TiBlack™ Coating (UV, VIS, NIR)

Benefits

• Optical Black Coating
• High absorption in the UV, VIS and NIR range
• Low reflection in the UV, VIS and NIR range
• Can be patterned by lift-off and chemical etching
• Low defect and pin hole level
• Excellent environmental stability
• Good adhesion on glass and metal substrates
• RoHS conformity

Applications

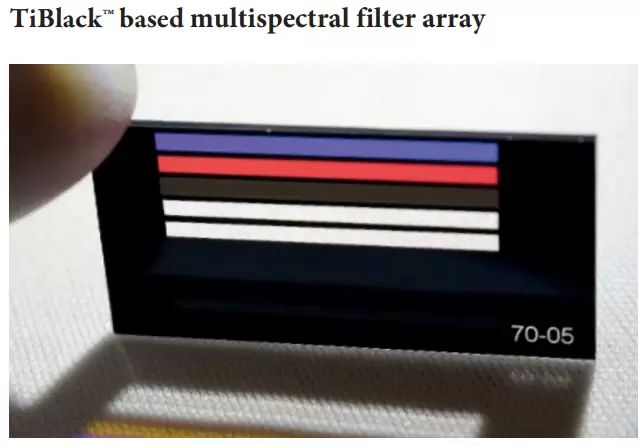

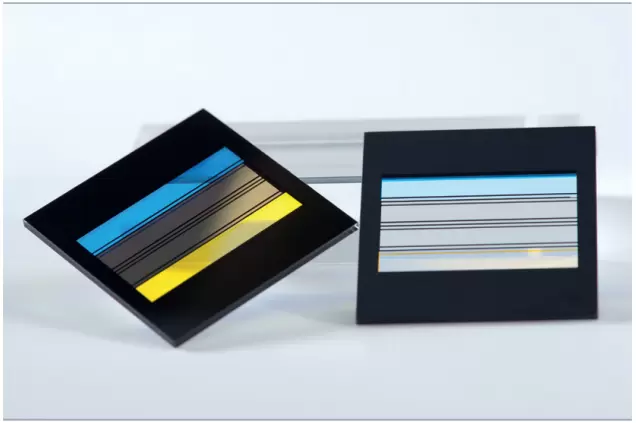

TiBlack™ coating will mainly be used to reduce scattered light and for blackening. Examples are apertures in lense systems of endoscopes or sensor lids. Furthermore, in projection applications, digital imaging and for scientific solutions. In monolithic arrays of dichroic filters, TiBlack™ is used to cover the interspace between the individual filters resulting in minimized cross-talk and stray light.

• Multi-Bandpass Filters
• Endoscopy
• Space observation
• Sensor lids for cameras
• Multispectral Imaging

Technical Data

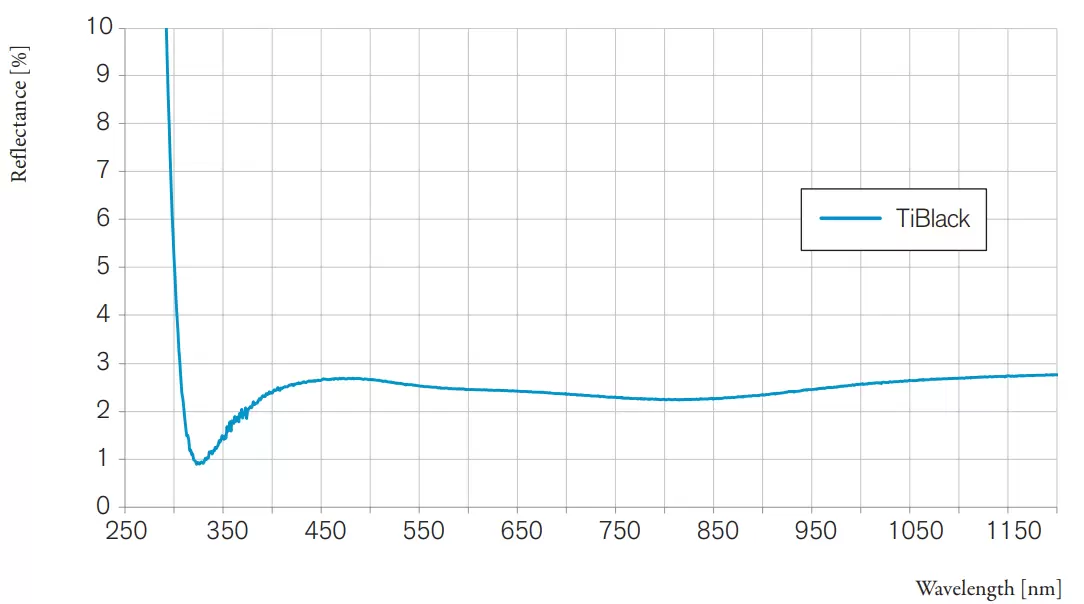

Spectral specification

R<3% avg 350-1200 nm, AOI = 0-45° r-pol

R<5% abs 350-1200 nm, AOI = 0-45° r-pol
(R<3% abs for angles up to 15°)

R<3% abs. 350-850 nm AOI= 0-45° r-pol

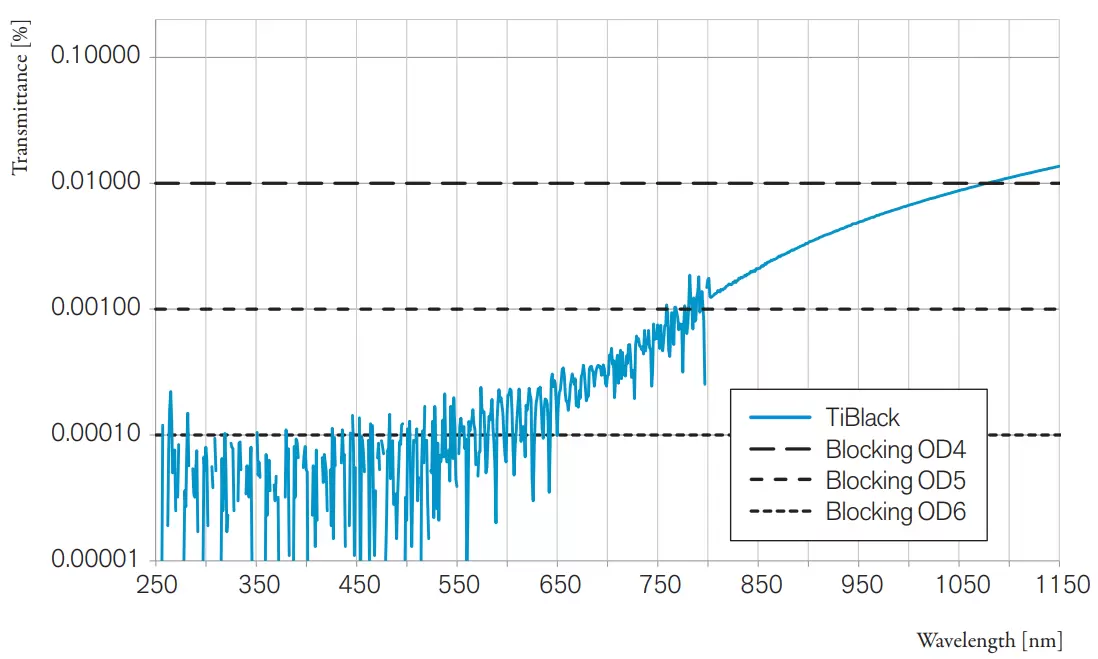

T<0.001% abs. 350-850 nm (OD5)

T<0.01 abs. 350-1200 nm (OD4)

Better performance for internal reflection possible

Environmental testing

Adhesion according to DIN ISO 9211-04-02-03

Abrasion according to DIN ISO 9211-04

Humidity: +45° C; 95%-100% r.H.; 24 h according to DIN ISO 9022-12-01-1

Temperature resistance

Thermal Cycling (-62 °C ± 2° C / 10 h and +72° C ± 2° C/
1 Zyklus, <10 K/min (2 K/min)

High temperature storage @ 150°; 72 hours

Vacuum Cycling: -45° C up to +75° C; P< 10-5 mbar;
10 minutes dwell time; 10 cycles

Gamma Radiation exposure

Source: Co-60 gamma irradiation (TID: 200 krad)

Dose rate: 7.25 krad (air)/h (2.0135 E-2 Gy (air)/s)

Proton: 62 MeV for 1h
