Ti : Sapphire Laser Line Mirrors

HR Laser Line Mirrors for Titan-Sapphire Laser

Materion Balzers Optics provides high reflective laser line mirrors for Ti:Sapphire Lasers. These advanced beam-steering components are especially designed for short-pulse lasers applications like ablation, engravings, micro-drilling or micro-cutting. Materion Balzers Optics mirrors stand out due to highest reflectivity, minimized optical losses and best surface quality, which allow for an excellent laser damage threshold. Therefore these laser line mirrors demonstrate superior operating lifetimes and hence minimize operating cost and downtime of any Ti:Sapphire Laser-System.

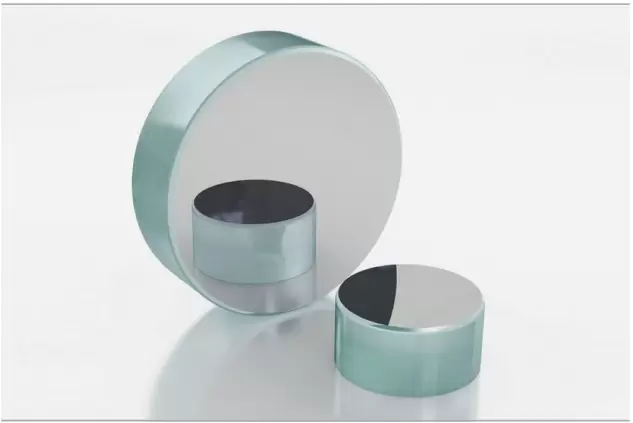

HR Laser Line Mirrors for Titan-Sapphire Laser

Benefits

  • Useable for laser line: 700…900nm
  • Standard reflectivity >99.7% for s- and p-pol
  • Optimized reflectivity upon request
  • High power laser application from ns down to fs range
  • Angle of incidence: 0° and 45°
  • Low losess and scattering because of RMS<2Å
  • Excellent long term stability


Applications

  • Beam line units
  • Laser material processing systems
  • Laser marking

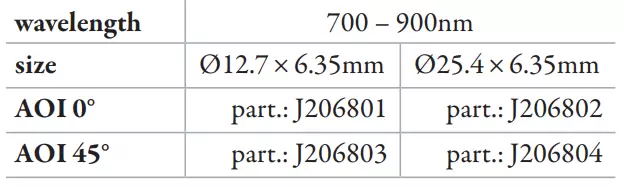

Order information

Order information
Measured spectral curve 45° Mirror Ti:Sapphire HR>99.7%@700-900nm

Technical Data

Wavelength 700…900nm (optimizes for 800nm)

Reflectance >99.7%(ave) for any polarization

Angle of Incidence 0° or 45° (customizes upon request)

Optimized reflectivity >99.9%

Flatness L/10

Surface Quality (Scratch-Dig) 10-5

Dimensions 12.7(0/-0.1)mm×6.35(±0.1)mm;
25.4(0/-0.1)mm×6.35(±0.1)mm
(others on request)

Substrate Fused Silica

Parallelism <5 arcmin
