Nd :YAG Laser Line Mirrors

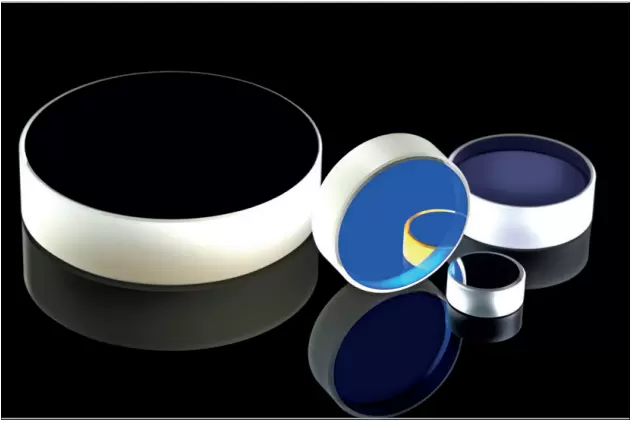

HR Laser Line Mirrors for Nd:YAG and their harmonics

For Nd:YAG Laser 1064nm and their harmonics 532nm, 355nm and 266nm, Materion Balzers Optics provides high reflective laser line mirrors with an LiDT >50J / cm² at 1064 nm (10ns pulses). The Nd:YAG laser line mirrors are offered for 0° and 45° application. The high level threshold and the reflectivity of R>99.5% for s- and p-polarized light, makes them well suitable for all industrial ²⁴∕7 application. Standard dimensions are ½” and 1”. Other, customized dimensions, available upon request.

HR Laser Line Mirrors for Nd:YAG and their harmonics

Benefits

Useable for laser lines Nd:YAG: 1064/532/355/266nm
Standard reflectivity >99.7% for s- and p-pol
Optimized reflectivity >99.9%
High power laser application from ns down to fs range
Angle of incidence: 0° or 45°
Low losess and scattering because of substrat surface accuracy RMS<2Å
Excellent long term stability

Applications

Laser-Beam manipulation
Laser material processing systems
Laser marking

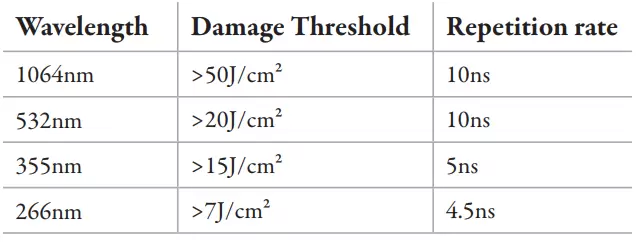

Overview LiDT Value

Overview LiDT Value

Technical Data

Wavelength 1064nm/ 532nm/ 355nm/ 266nm

Reflectance >99.5% for any polarization

Angle of Incidence 0° or 45° (customizes upon request)

Flatness L/ 10

Surface Quality 10–5

Dimensions 12.7(0/-0.1)mm×6.35(±0.1)mm;
25.4(0/-0.1)mm×6.35(±0.1)mm
(others on request)

Substrate UV Fused Silica

Parallelism <5 arcmin

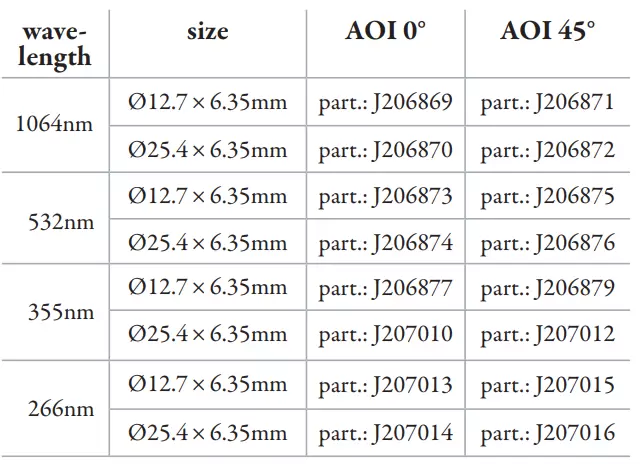

Order information

Order information

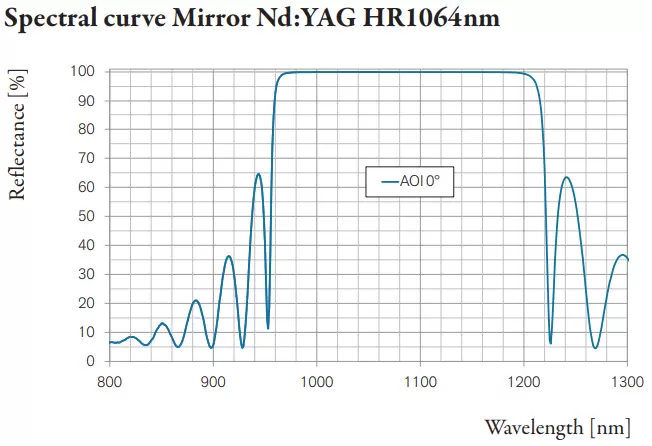

Spectral curve Mirror Nd:YAG HR1064nm

Spectral curve Mirror Nd:YAG HR266nm

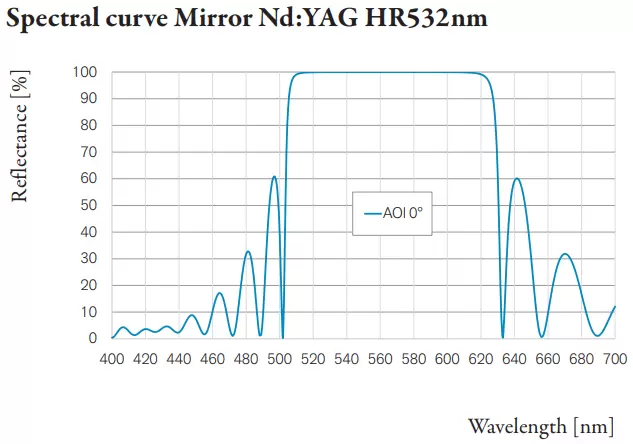

Spectral curve Mirror Nd:YAG HR532nm

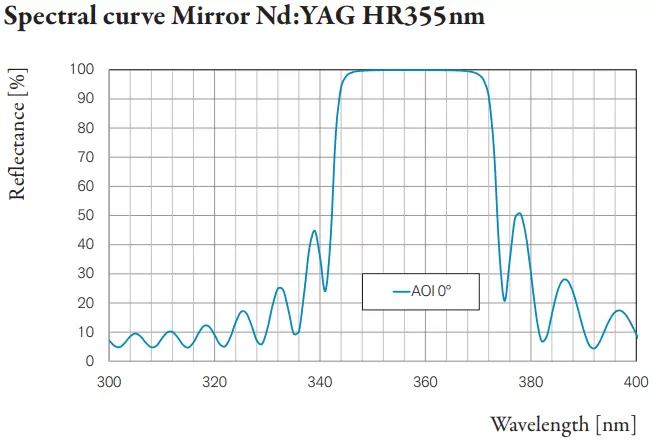

Spectral curve Mirror Nd:YAG HR355nm
