Narrow Bandpass Filters

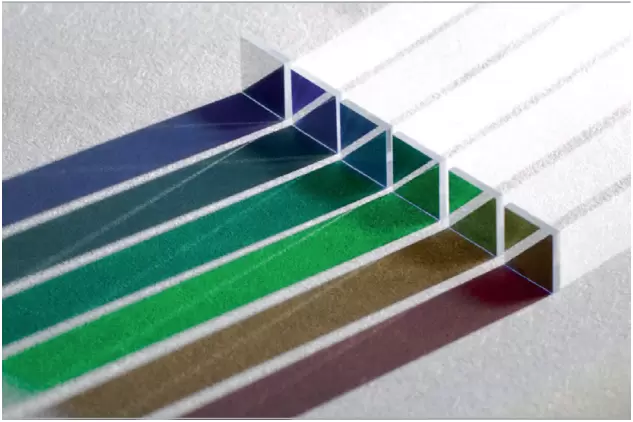

Narrow Bandpass Filters for Biomedical and Industrial Applications

Materion Balzers Optics narrow bandpass filters are characterized by high passband transmittance, accurate center wavelength, steep filter edges between pass- and blockband, and broadband blocking range. With typical passband width between 2nm and 20nm, and a blocking depth of OD5 the filters provide an excellent signal-to-noise ratio. In manifold applications, the filters are used to select the appropriate part of the spectrum either from a light source or in front of a photodetector.

Benefits

Low loss in passbands
High power stability because of all-dielectric blocking (no absorption in the VIS /NIR)
Long-term shift-free spectral performance
High environmental stability by all-dielectric coating
Customized filter designs available
Coating on single substrate, no mounting or cementing

Applications

Laser line filters
Customized LED emission
Multispectral and hyperspectral imaging
Highly-sensitive detection of spectral lines

Technical Data

Wavelength

Center wavelength from 320 to 2000 nm

Peak Transmittance

T_peak > 90%

Bandwidth

2 – 20 nm

Blocking

OD5 @ 300 – 1100 nm or OD3 @ 1000 – 2000 nm

Angle of Incidence

0°, enlarged angle range on request

Substrate

Optical glass

Dimensions

Standard size Ø 25 mm, thickness 3 mm,
other dimensions on request

Parallelism

< 3 arcmin

Surface Defects

5 / 3 x 0.1

Environmental Stability

Temperature –40 ... + 150 °C, Humidity up to 99%

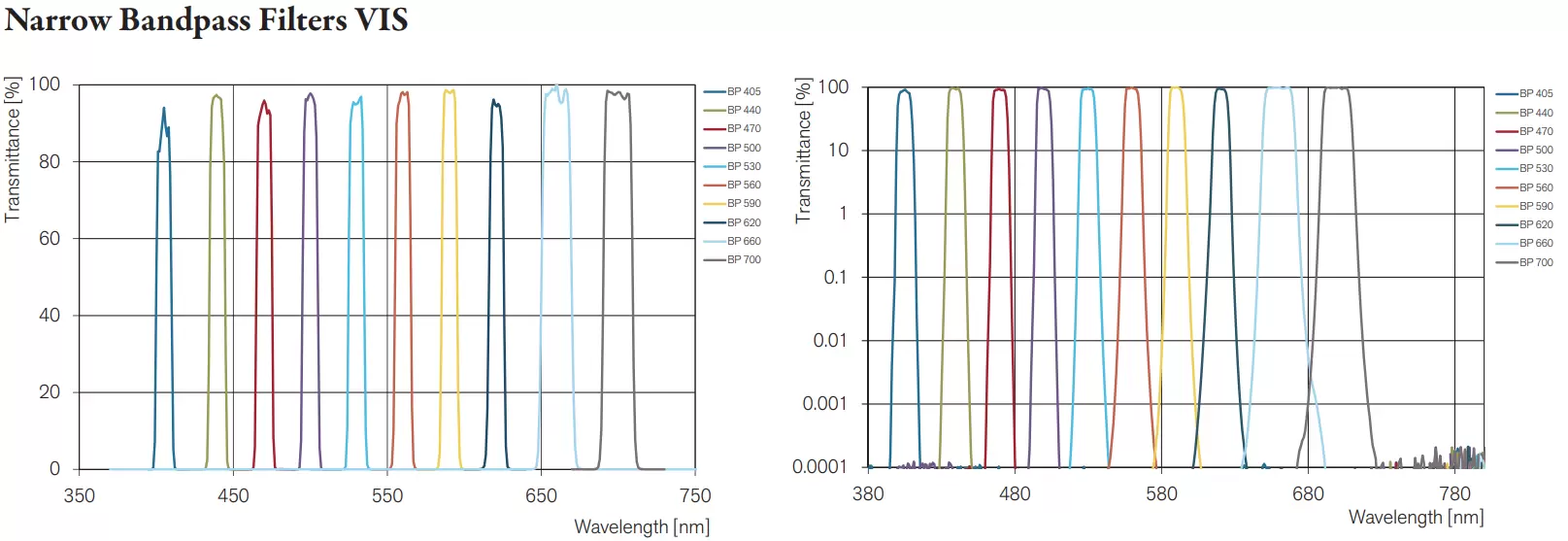

Fig. 1+2: Measured spectral transmittance for a set of narrow bandpass filters in the VIS spectral range.

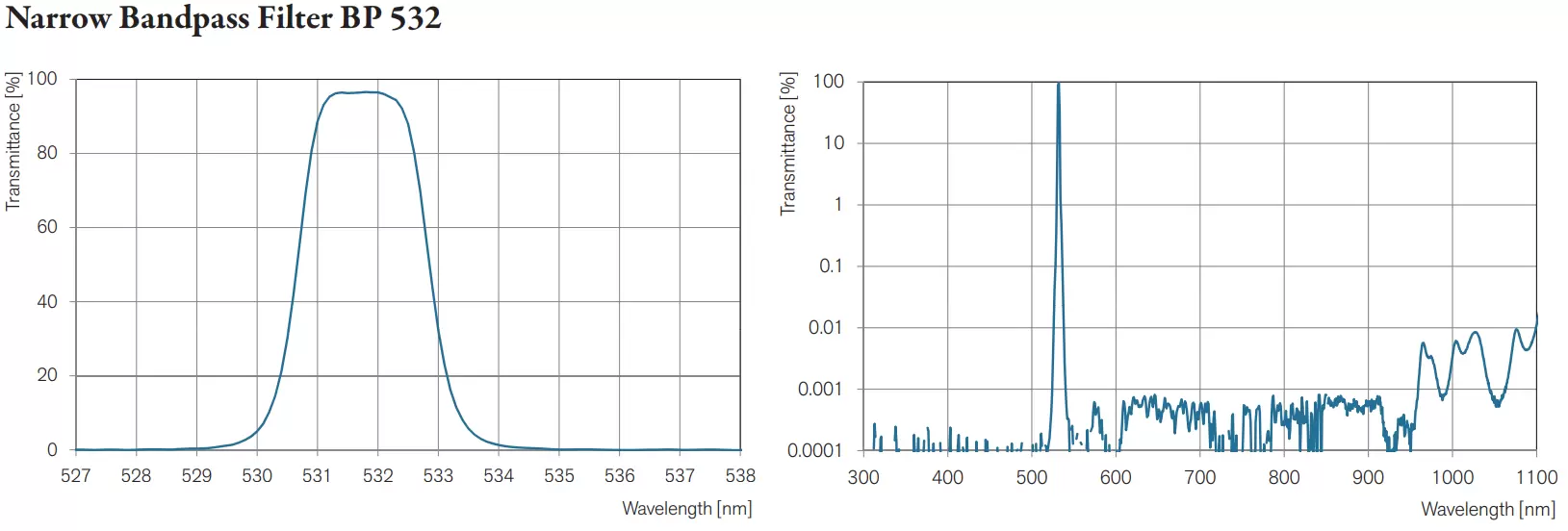

Fig. 3+4: Measured spectral transmittance for a narrow bandpass at 532 nm with 2 nm bandwidth.

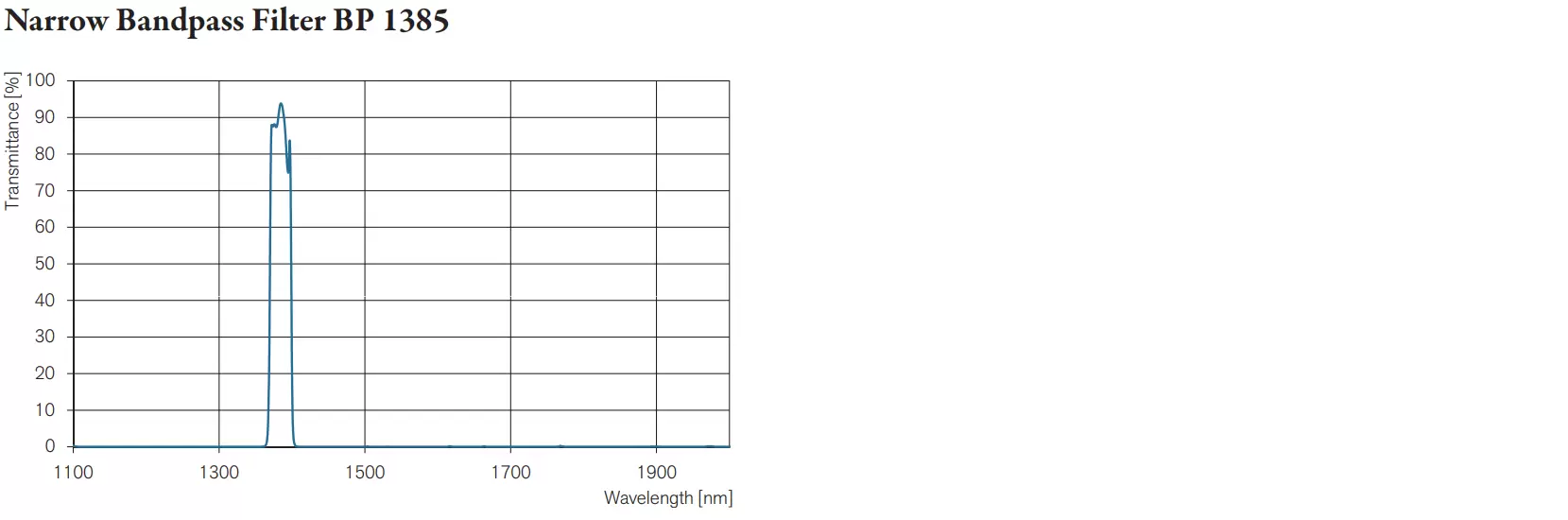

Fig. 5: Measured spectral transmittance for a narrow bandpass at 1385 nm with 30 nm bandwidth.
