Diflex™ Broadband Dielectric Mirrors

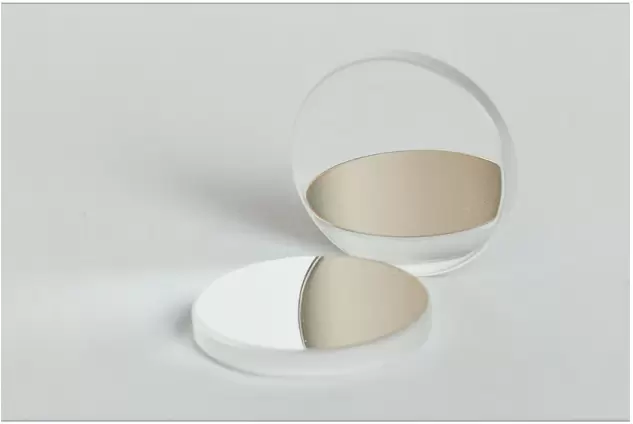

All-Purpose Solution for High Reflectivity Mirrors

Materion Balzers Optics provides the best choice of broadband high reflectivity mirrors. Diflex™ mirrors are characterized by extreme reflectivity, low scattering and a wide acceptance range for the angle of incidence. The consistent and high reflectivity for any polarization covers the wavelength range between 320nm to 2000nm. Diflex™ mirror coatings are composed of metall-oxide layers. They withstand harsh environmental conditions and can be cleaned repeatedly.

Benefits

Consistent and high reflectivity over the full VIS and NIR spectral range
R > 99% for wide range of angle of incidence
Long-term shift-free spectral performance
High environmental stability
Wide flexibility in filter size

Applications

High-performance low-loss optical systems
Laser optics
Biophotonics

Technical Data

Wavelength

Diflex™ 1100 for 350 – 1100 nm

Diflex™ 2000 for 320 – 2000 nm

(customized versions on request)

Reflectance

>99 % for any polarization

Flatness

λ/2

Angle of Incidence

Standard 0° – 45°, (different AOI on request)

Surface defect

5 / 1 x 0.16

Substrate

Fused silica or BK7

Dimensions

Standard size Ø 25mm,

Thickness 6mm

Other dimensions on request

Parallelism

< 5 arcmin

Environmental Stability

Temperature –40 ... + 150°C

Humidity up to 99%

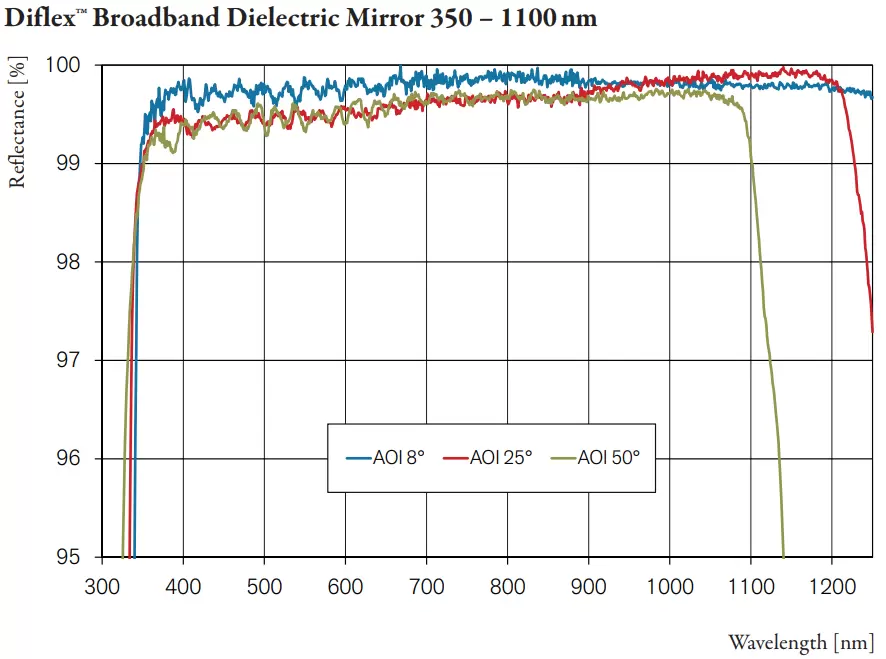

Fig.1: Measured spectral reflectance of unpolarized light, AOI 8°, 25°, 50°

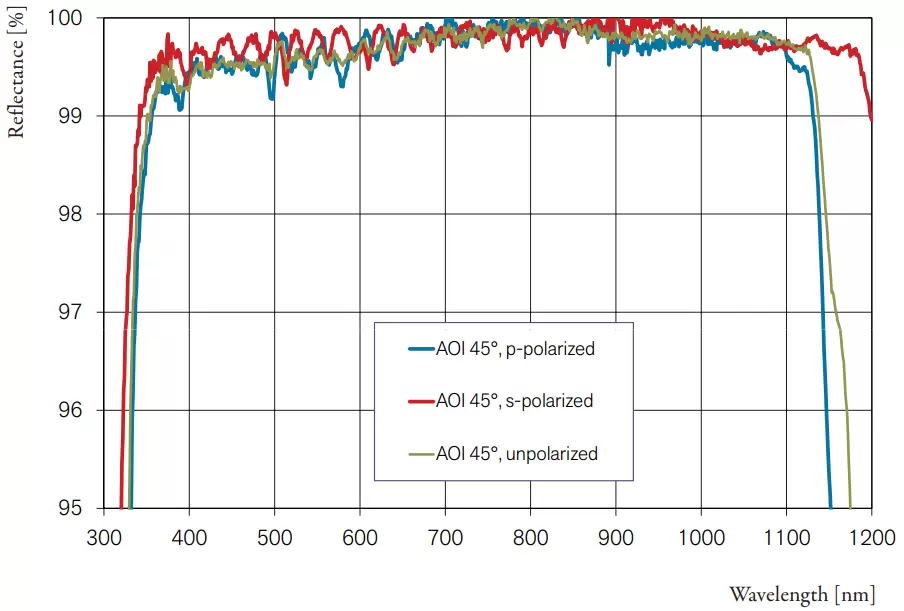

Fig.2: Measured spectral reflectance of p-, s- and unpolarized light, AOI 45°

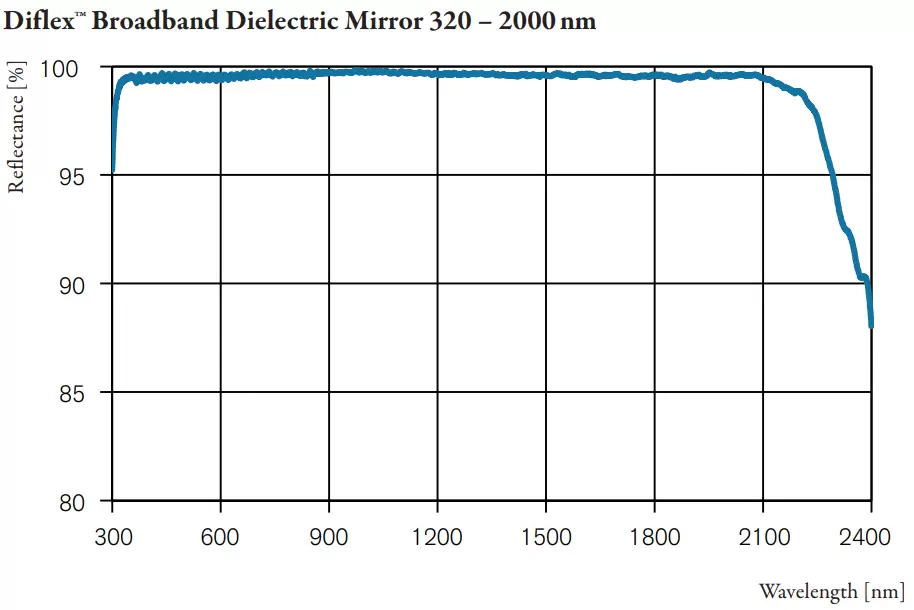

Fig.3: Measured spectral reflectance, AOI 8°
