CrBlack™ Coating (VIS, VIS-NIR)

Optical Black Coating

CrBlack™ is an optical black coating, characterized by high absorption and low reflection in the VIS and near IR range as well as low defect / pin hole level. It is possible to adjust color impression and optical density on customer request.

Benefits

• Optical Black
• High absorption in the VIS and NIR range
• Low reflection in the VIS and NIR range
• Optical properties achieved for internal reflection and / or external reflection
• Can be patterned by lift-off and chemical etching
• Low defect and pin hole level
• Excellent environmental stability
• Good adhesion on glass and metal

Applications

CrBlack™ coating will mainly be used to reduce scattered light. Examples are apertures in lense systems of endoscopes, sensor lids or projection applications.

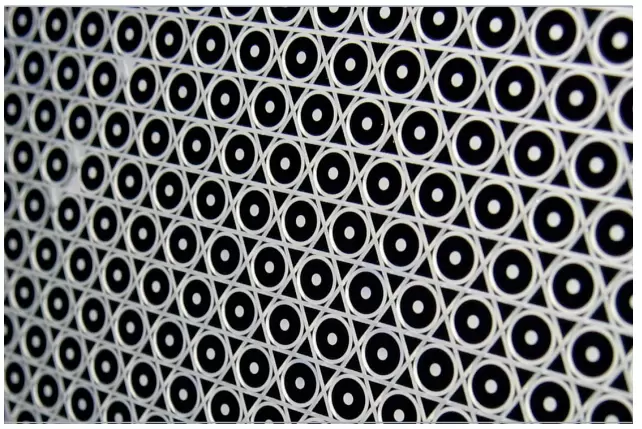

In monolithic arrays of dichroic filters, CrBlack™ is used to cover the interspace between the individual filters resulting in minimized cross-talk and stray light.

• Endoscopy
• Sensor lids for cameras
• Multispectral Imaging
• Projection

Technical Data

Spectral specification VIS

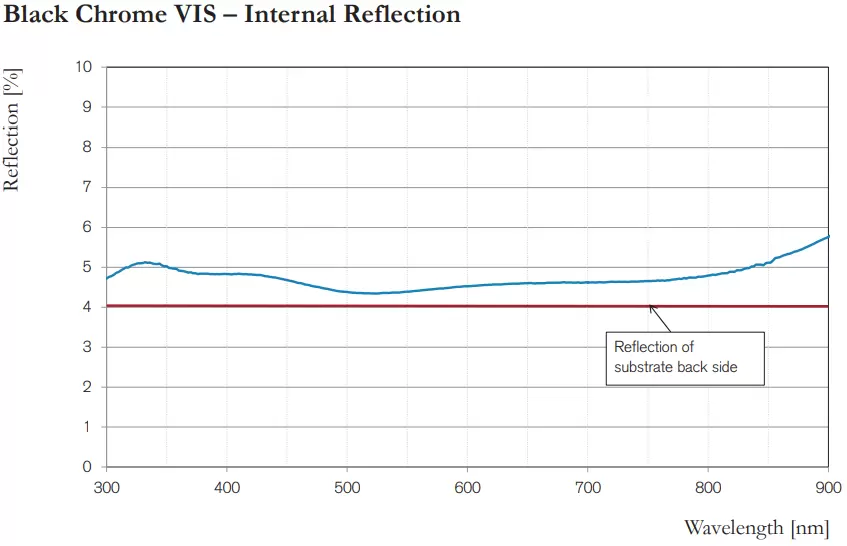

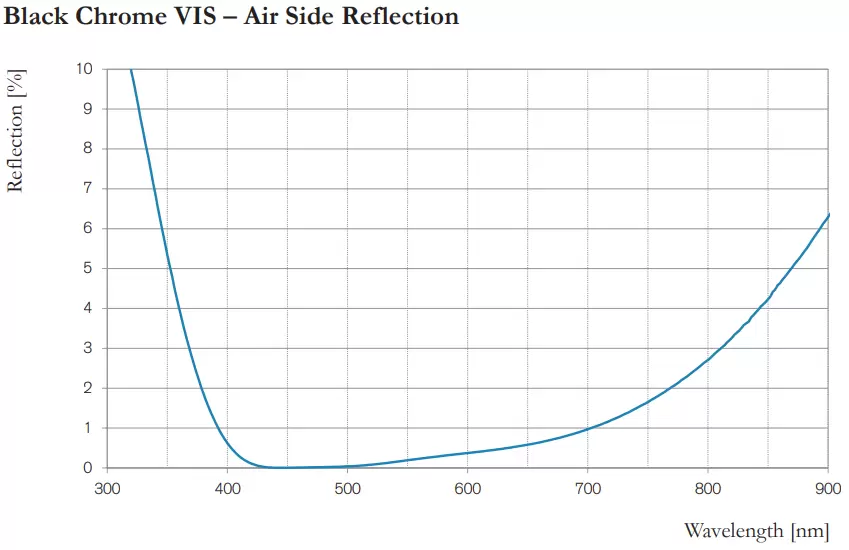

R<1.5% abs 410-620nm, AOI = 0-15° q-pol

R<5% for angles up to 60°

OD4 or higher

Better performance for internal reflection possible

Spectral specification VIS-NIR

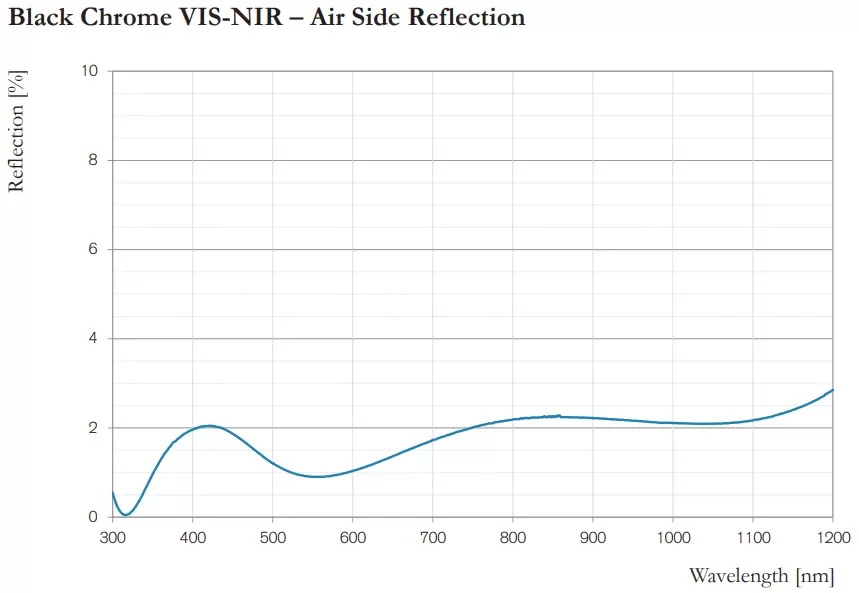

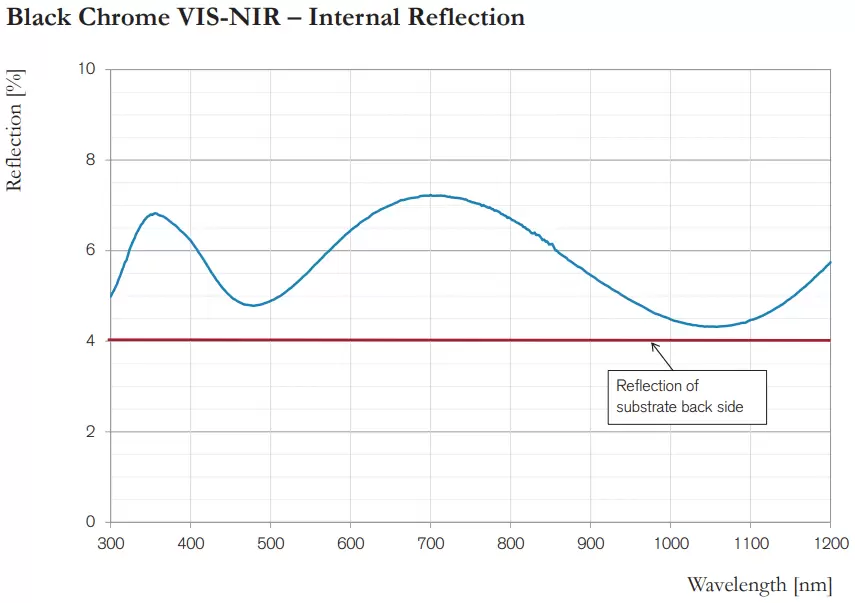

R<4.0% abs 300-1200nm, AOI = 0-15° q-pol

R<8% for angles up to 45°

OD4 or higher

Better performance for internal reflection possible

Environmental testing

MIL-C-675 A

Hardness, 20 strokes

Humidity, 24h / 49° / > 95% r.H.

Salt water, 24h / 4.5% NaCl

Salt fog, 24h, 4.5% NaCl

Temperature resistance

Up to 300°C for 24h in air

Higher temperatures for shorter periods of time possible

Defect specification:

Standard: No pin holes > 20µm

Advanced: No pin holes > 10µm

On 5”×5” square substrate

Substrate dimensions:

Up to 8” diameter, thickness down to 0.2mm

Larger sizes upon request
