GoboExtreme™ Dark

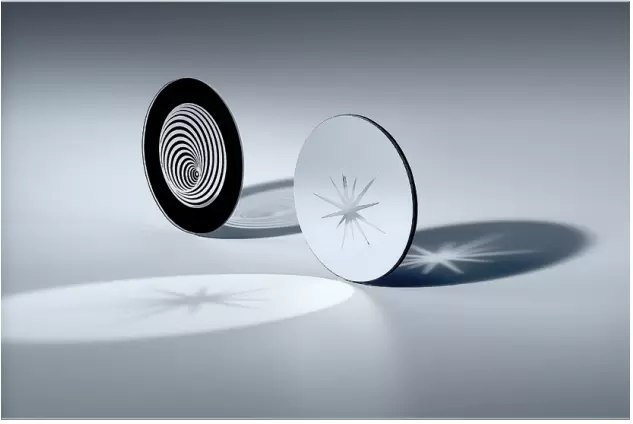

High Performance Blanks for Gobo Imaging

Materion Balzers Optics’ GoboExtreme™ Dark is a high performance glass black & white gobo blank that provides extended thermal stability and lifetime compared to conventional gobos. The high performance double coated design combines both:

  • a “white side”: highly reflective aluminum mirror that faces the lamp, transmitting light only where coating is removed to reveal the gobo image pattern, and
  • a “black side”: highly absorbing multi-layer coating that faces the lens and absorbs incident light to maximize contrast and prevent image ghosting.

Designs are available to support multiple imaging processes including laser ablation and chemical etching.

High Performance Blanks for Gobo Imaging

Benefits

  • Long-term termperature stability
  • Extended lifetime
  • High contrast image
  • Prevents image ghosting
  • Variety of shapes & sizes available
  • Laser ablation & chemical etch versions
  • High volume production capabilities
  • Engineering support for custom designs


Applications

  • Entertainment lighting
  • Architectural lighting
  • Retail sales lighting
  • Concert, stage, club, worship
  • High end luminaires
  • Standard and custom images


Technical Data

Spectral Characteristics, AOI = 0º

White Side Ravg. for λ = 450–650 nm

Black Side Ravg. for λ = 450–650 nm

Laser ablation option Rabs. for λ = 1064 nm

Subtrate Material Heat resistant borosilicate glass

Temperature Stability up to 350°C

Standard

≥ 91%

≤ 8%

≤ 8%



enhanced performance

≥ 93%

≤ 4%

≤ 5%




Other performance grades and specifications available on request.

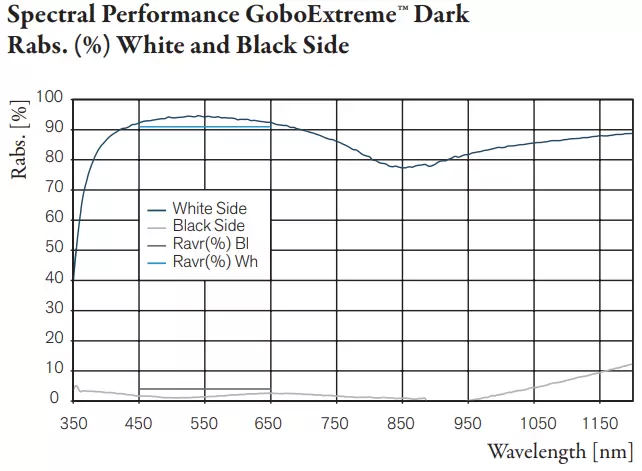

Spectral Performance GoboExtreme™ Dark Rabs. (%) White and Black Side

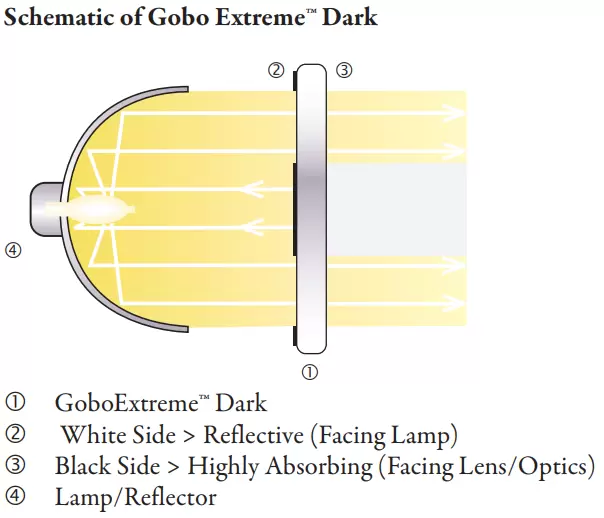

Schematic of Gobo Extreme™ Dark
