Iralin™ – Duolin™ – Supertriolin™

Broadband Anti-Reflection Coatings

Materion Balzers Optics offers a range of different anti-reflection coatings to cover a large field of applications:

Multilayer AR-coatings designed for maximum efficiency in the visible range. Our Iralin™ family can be shifted either into the UV range down to 350 nm or into the near infrared up to 1100 nm.
Duolin™ is laid out for the visible range plus an additional laser line. This can be any conventional low power laser.
Supertriolin™ covers a very broad range of the spectrum between 450 nm up to 1100 nm. The bandwidth can even be extended as well at the cost of slightly higher reflectivity.
All these coatings are useable for most commercial glass substrates.

Technical Data

Iralin 85™

Rabs. < 0.4%

Ravg. < 0.3%

450 – 650 nm

AOI = 0 –15°

Iralin 86™

Rabs. < 0.4%

Ravg. < 0.3%

400 – 610 nm

AOI = 0 –15°

The below mentioned coatings can be made to conform to many different applications by modifying band width

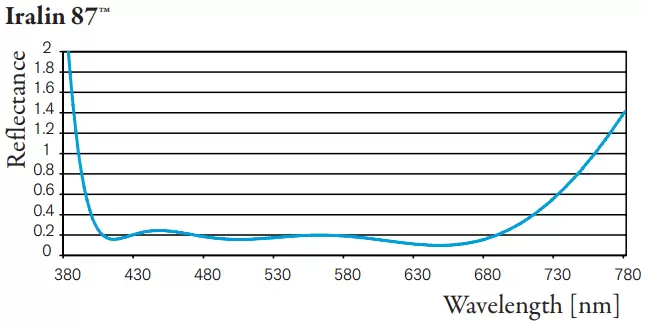

Iralin 87™

Rabs. < 0.5%

400 – 700 nm

AOI = 0 –15°

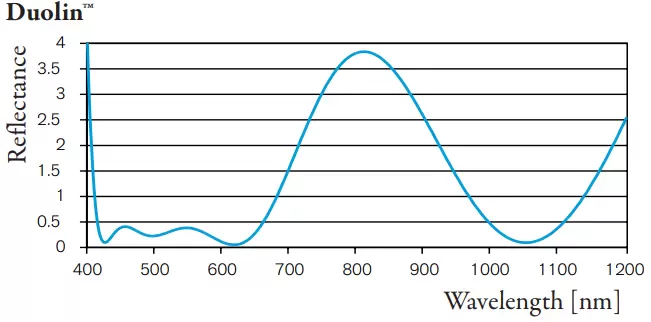

Duolin™

Ravg. < 0.5%

Rabs. < 0.5%

475 – 670 nm

1064 nm

AOI = 0 –15°

other laser wave length are available on request

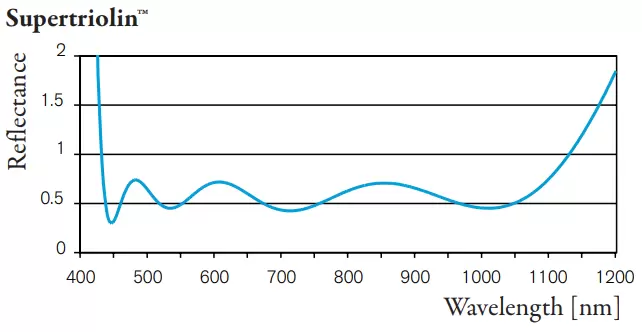

Supertriolin™

Ravg. < 0.8%

Rabs. < 1.3%

450 –1100 nm

AOI = 0 –15°

Environmental properties, according to MIL-C-675B

para. 4.5.7

para. 4.5.8

para. 4.5.9

para. 4.5.10

para. 4.5.11

para. 4.5.12

salt solution, 24 h in 4.5% NaCl

humidity, 24 h 49 °C at > 95% r. H.

salt fog, 24 h in 4.5% NaCl

hardness, gum 40 strokes

hardness, cheesecloth 50 strokes

adherence, scotch tape test

Materion Balzers Optics offers a range of different anti-reflexcoatings to cover a large field of applications.
