Goldflex™

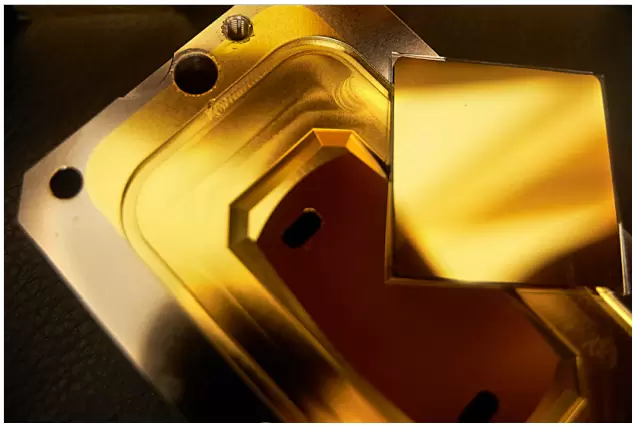

Ultra efficient Broadband IR Gold Mirror

All types of optical sensing devices utilize light, which needs to be routed by mirrors. To optimize this, Goldflex™, a gold based metallic mirror is recommended. This gold mirror offers the broadest spectral range of any mirror. It is characterized by excellent reflectivity and lowest polarization dependence in IR-wavelength range. Although the reflectance is lower in the visible range, it is still greater than 90% at 633nm for beam steering with HeNe laser.

Benefits

High reflectivity up to 99%
Excellent environmental durability
Suited for applications with temperature sensitive substrates
EU RoHS directive compliant

Applications

Beamsteering/Scanning IR mirrors

Laser Processing systems
Construction & Logistics
Factory Automation
Metrology & Inspection
Environmental Protection
Safety & Security
Telekom network systems

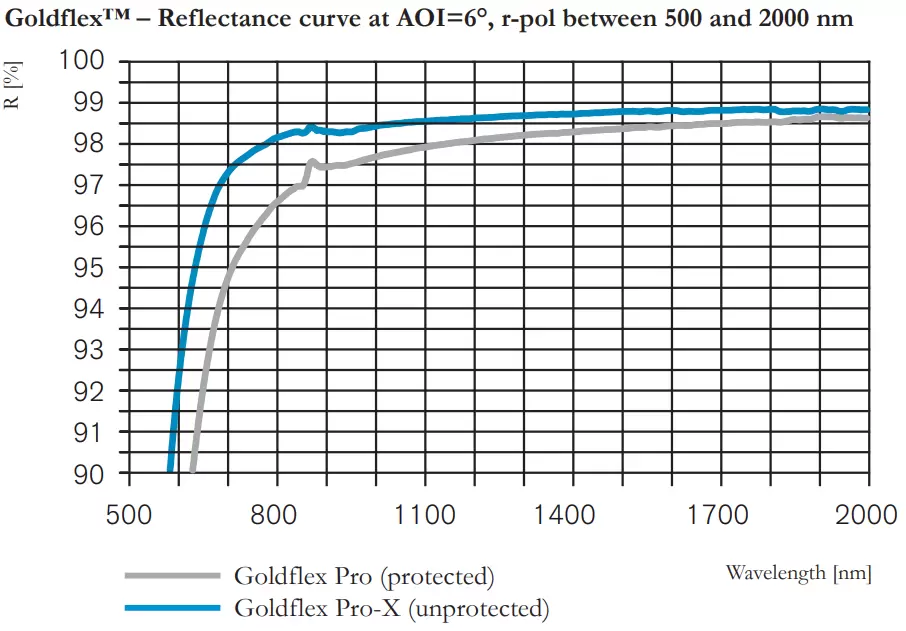

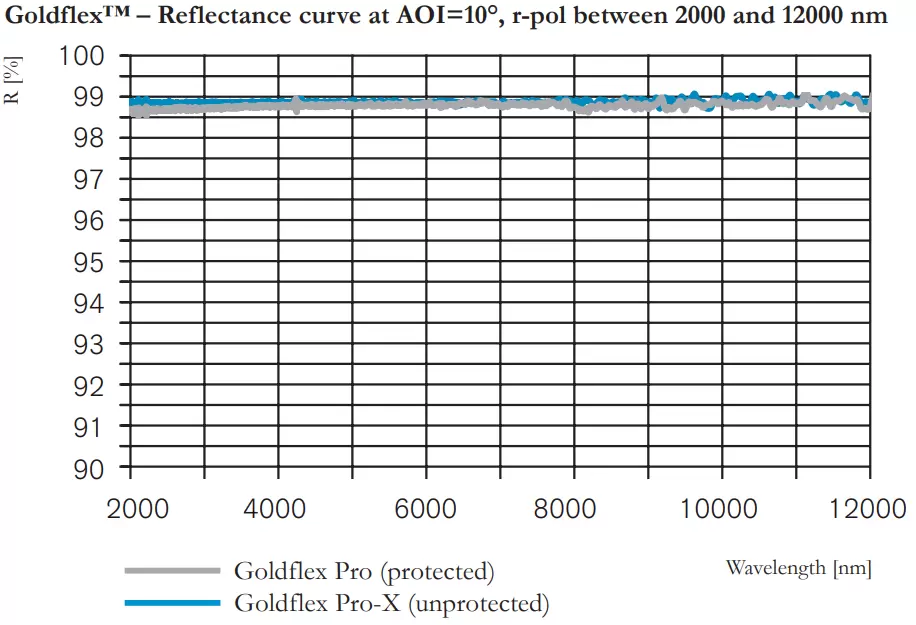

Technical Data

Goldflex™ Pro with protective layer

Ravg. > = 97.5% at 800–2000 nm

Rabs. > = 98% at 2000–12000 nm

AOI = 0°–15°

r-pol.

Environmental resistance and durability

The coating withstands the following tests
on glass substrates

Temperature

(MIL-M-13508C, para. 4.4.4.)

5 hrs each at –62° and +71°C

(ISO 9022-2)

16 hrs at –62° and 2 hrs at +71°C

Abrasion

(MIL-M-13508C, para. 4.4.5.)

50 strokes/cheesecloth

(ISO 9211-4-01)

50 strokes/cheesecloth

Adhesion

(MIL-M-13508C, para.4.4.6.)

Scotch tape test, slow

(ISO 9211-4-02-01)

2–3 s/25 mm/tape 3M

Humidity

(MIL-M-13508C, para. 4.4.7.)

24 hrs. at 49°C r.h. 95%

(ISO9022-2)

24hrs at +40°C, r.h. 95%

Goldflex™ Pro-X without protective layer

Ravg. > = 98% at 800–2000 nm

Rabs. > = 98.5% at 2000–12000 nm

AOI=0°–15°
