NIR-TRANSMAX™ – AR Coating for a Broad NIR Range

Ultimate Efficiency for NIR Sensors and Optical Network Devices

NIR-TRANSMAX™, (Near Infra Red) a Materion Balzers Optics product, is a broadband multilayer AR (antireflection) coating. It is designed to exhibit lowest reflection in the range from 1250– 1650 nm (S-, C- and L-band range) simultaneously. It reduces the insert loss to R < 0.1% (–0.005 dB) and guarantees an ultimate efficiency for NIR applications such as sensors and Optical Network Devices.

Benefits

Concept for mass production and logistics
Non polarizing
Ultimately low insert loss R < 0.1% (- 0.005dB)
Covers the S-, C- and L-band simultaneously
Absorption free
Excellent environmental resistance

Applications

Cover glass of optical devices
High quality instrument
Lenses from (ø1 to ø10 mm)

Technical Data

General application

Bandwidth

R abs.

R avg.

AOI

1250–1650 nm

<0.2%

<0.1%

0–15°

Environmental test according to MIL-C-675A

para. 4.6.8

para. 4.6.9

para. 4.6.10

para. 4.6.11

salt solution, 24 h in 4.5% NaCl

humidity, 24 h 49 °C at > 95% r. H.

salt foc, 24 h in 4.5% NaCl

hardness, rubber 20 strokes

Telecom application

Band

Bandwidth

1280–1350 nm

1528–1561 nm

1561–1620 nm

R avg.

0.1%

dB loss

– 0.005 dB

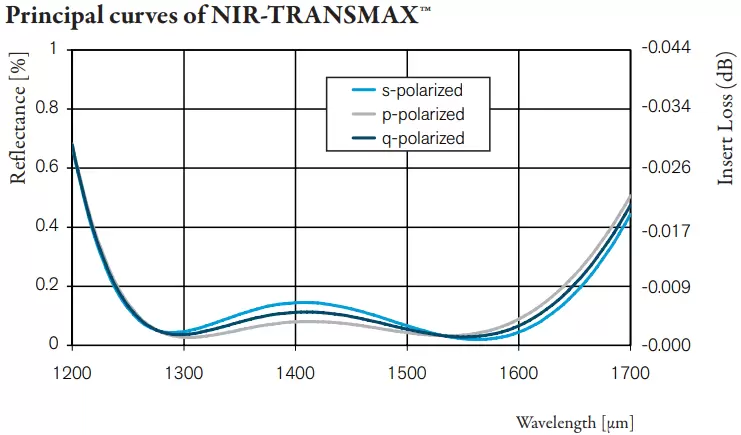

Maximal deviation of s- and p-pol. at 1400nm ±0.1%

Environmental test

Temperature:

Humidity:

42 cycles – 40 °C /+85 °C 4h each

1000 h at 85 °C / 85% r.H

(Telcordia GR-1221 Core)
