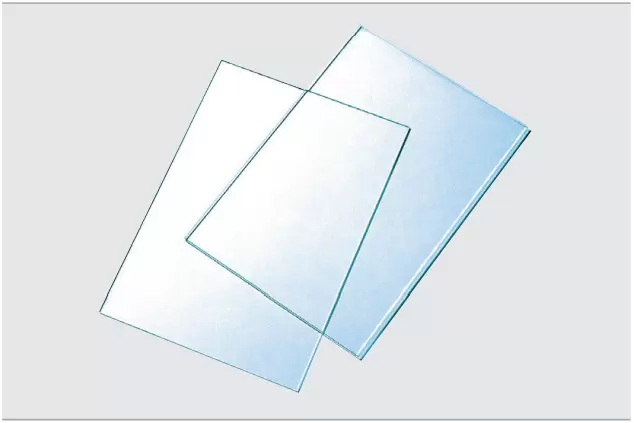

Cold Mirror

Separation of Visible and Infrared Radiation

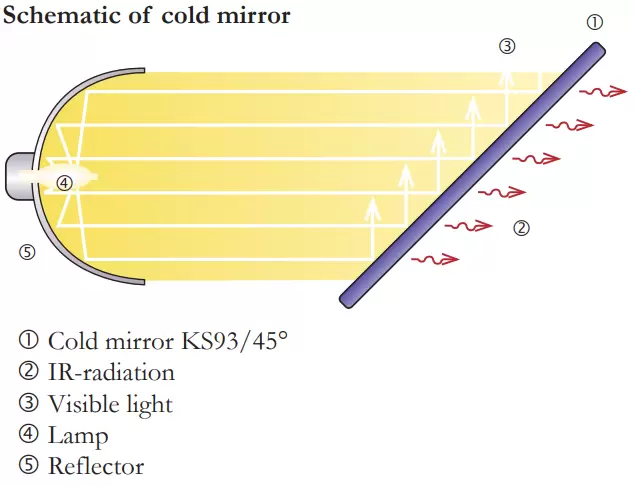

Cold mirrors reflect visible radiation while transmitting the infrared. Cold mirror KS93/45° is optimized for flat substrates and 45° incidence angle. Incidence angle of 0° on request.

Benefits

• High reflection of visible radiation
• High transmission of infrared energy
• Precise transition from reflection to transmission
• Good neutrality of reflected light
• Absorption free dielectric coating
• Mechanically and chemically resistant
• Defined color temperature on request

Applications

• Projectors
• Cineprojectors
• Copy machines
• Medical instruments
• Fiber optic illumination
• Instrumentation

Technical Data

Heat resistant:                                                                  up to 300 °C

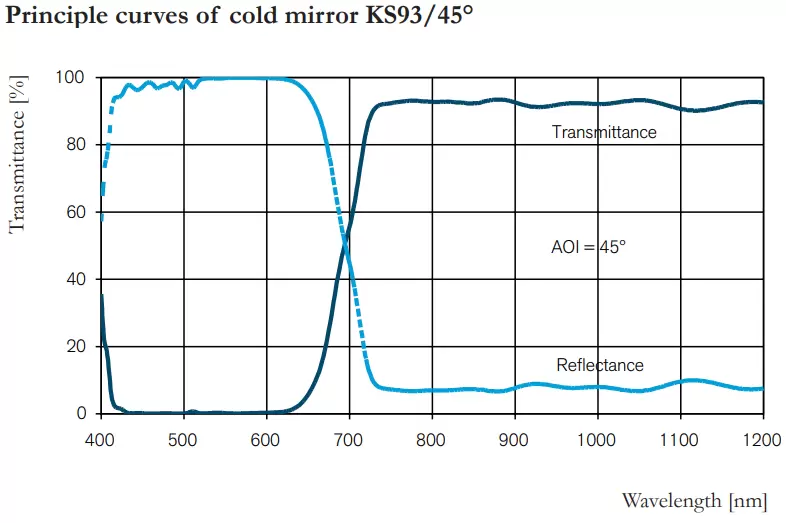

Spectral characteristics, AOI = 45°

R ≥ 97% 425–600 nm

T = 50% 685±15 nm

T ≥ 80% 750–2500 nm

Standard size:                                                       160 ⋅ 110 ⋅ 1.1 mm
