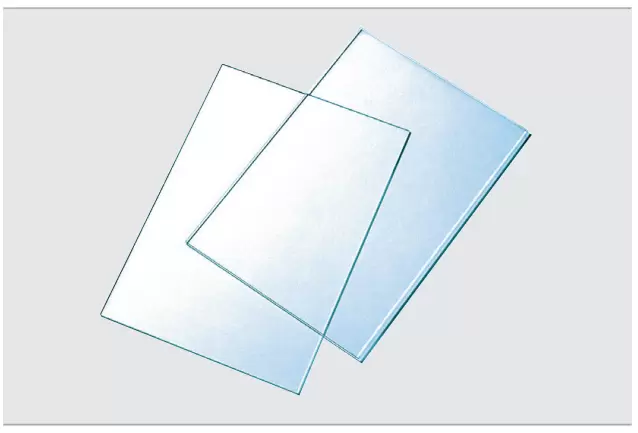

UV/IR-Blocker and UV-Blocker

High UV/IR Rejection / High UV Rejection

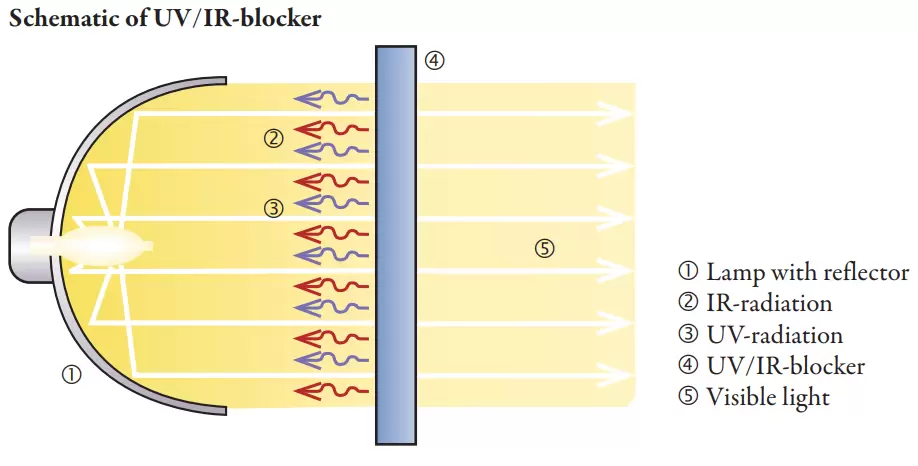

Materion Balzers Optics UV/IR-Blocker effectively remove damaging ultraviolet and unwanted infrared radiation produced by broadband light sources. A dielectric oxide coating design provides excellent transmission over the entire visible spectrum, without distorting the spectral emission of the light source. Filters are optimized for metal halide lamps and are particularly well suited for use in applications where high thermal loads exist. Where infrared raditation is not critical use the Materion Balzers Optics UV-Blocker.

Benefits

• Excellent UV- and broadband IR-reflection
• High visible transmission
• No color distortion
• UV- and IR-rejection independent of glass thickness
• Hard chemically and mechanically stable dielectric oxide coating
• High volume production capabilities

Applications

• Entertainment Lighting
• Fiber optics
• Product showcases
• Museum lighting
• Illumination of arts
• Medical lighting

Technical Data

Temperature resistant

up to 400 °C

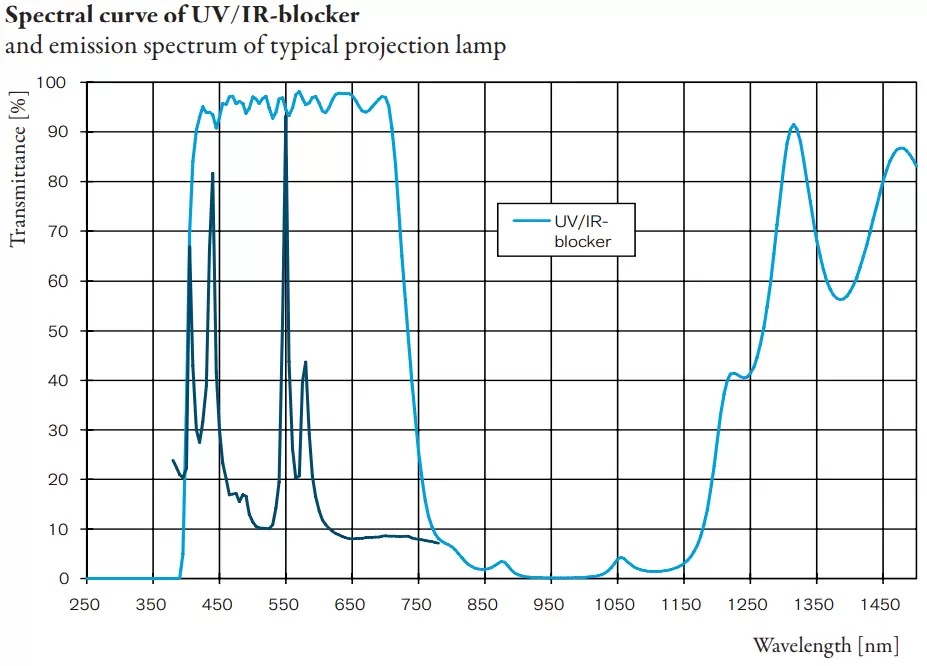

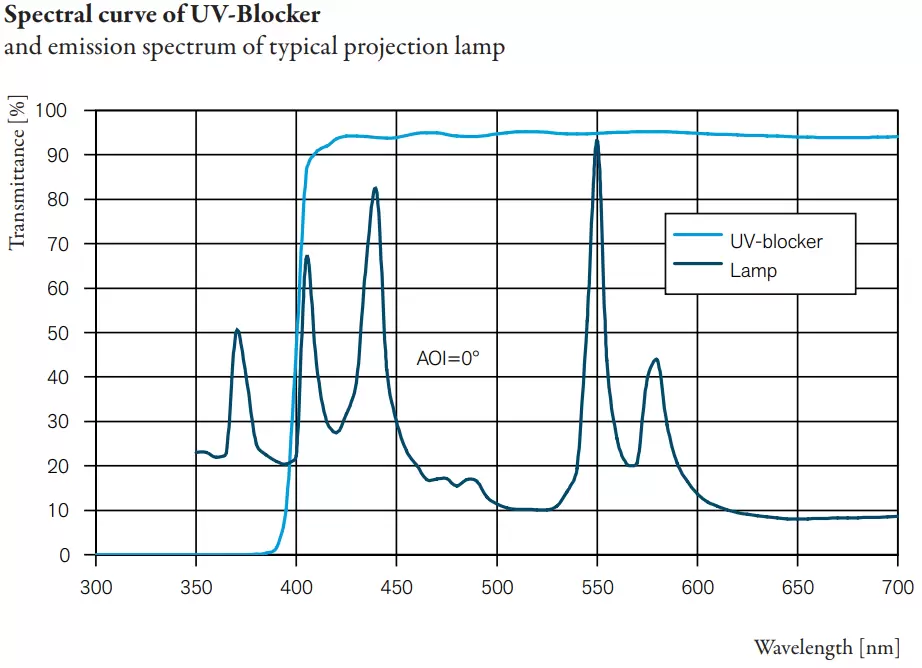

Spectral characteristics, AOI = 0°

T abs. < 1% up to 380 nm

T = 50% for λ = 405 ±10 nm

T avg. > 90% for λ = 425– 680 nm (UV/IR-Blocker)

T avg. > 90% for λ = 425– 760 nm (UV-Blocker)

T = 50% for λ = 730 ± 20 nm (UV/IR-Blocker)

T avg. < 5% for λ = 800–1150 nm (UV/IR-Blocker)

Substrate Material

Heat resistant borosilicate glass

Standard size

160 ⋅ 110 ⋅ 1.1 mm
