LiDAR Cover Window

LiDAR Cover Window for Automotive and Consumer Electronics

Materion Balzers Optics‘ LiDAR cover window products will provide excellent protection for LiDAR sensors. Our coating technology and integration solution enables your projects to achieve great optical and durability performances. We provide customized color solutions, best transmittance solutions for large AOI application, with integrated anti-fog and easy-to-clean solutions. Materion Balzers Optics technology platform is flexible in handling various substrate geometries and materials, enabling window designs to fulfill vehicle stylish design demand.

Benefits

Low temp AR coating technology specific for LiDAR window
Covering NIR from 840+nm to 1600+nm
Neutral color or black color solution
Full area coating solution
TopflexTM ( Easy-to-clean) integrated
Heating solution integrated
Excellent environmental durability for automotive application

Applications

Automotive
Aircraft
Consumer Electronics

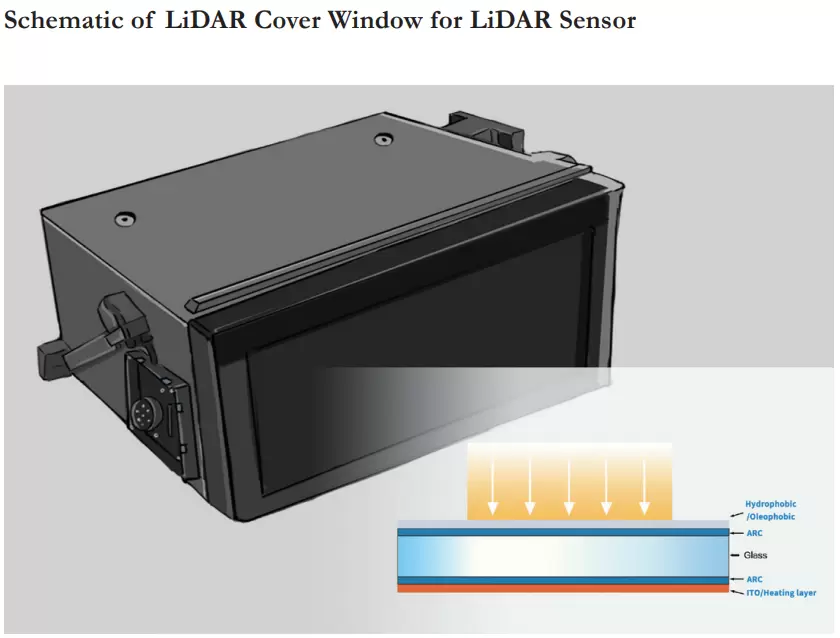

Schematic of LiDAR Cover Window for LiDAR Sensor

Technical Data

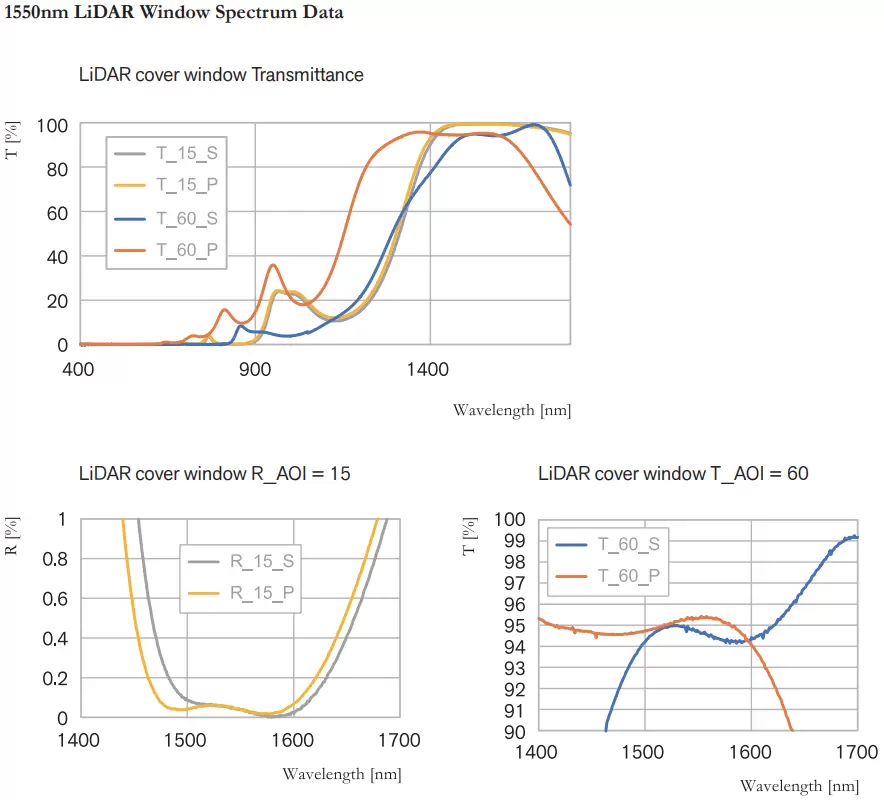

Coating Spectrum

T > 99 % in the laser band at normal angle incident
Ts > 94 %, Tp > 94% in the laser band at AOI = 60°
T < 2% in the visible range
R < 0.25% in the laser band for normal angle incident

TopFlex™ (Easy-to-clean)

AR coating with TopFlex™ coating
Wetting angle = 120°
Fluids and dirt do not adhere on the surface

Size

Can be customized, up to 300mm x 300mm

Heating Solution (Optional)

ITO or heating wire, etc
