Static Phosphor

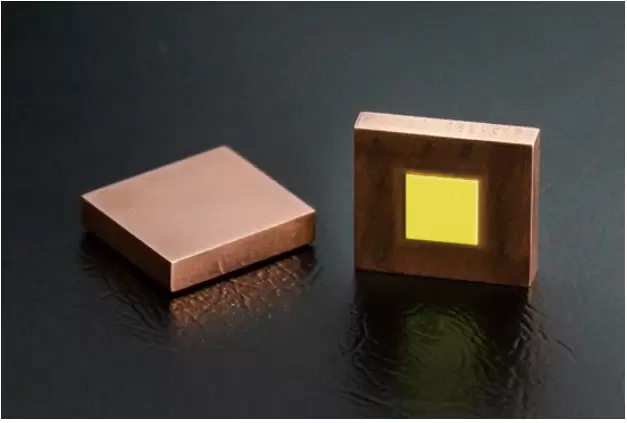

Static Phosphor for Projection Display


We offer various custom-configured Static Phosphor Assembly designs for different applications including projectors, solid state illumination, head-up displays, professional lighting, etc. The Static Phosphors Assembly is able to handle the high laser power density with excellent laser light converting performance while meet the requirements of the compact size for the new generation laser projectors or laser phosphor illumination system.

Static Phosphor for Projection Display


Benefits

  • Excellent efficiency performance for laser converting
  • Excellent thermal conductivity
  • Enhanced optical performance by optical
  • Handle higher laser power density
  • Full inorganic solution
  • Superior reliability
  • Compactness
  • No moving parts



Applications

  • Digital Projection
  • Laser TV
  • Searchlights
  • Medical Lighting e.g. Endoscopy
  • Life Science
  • Stage Lighting

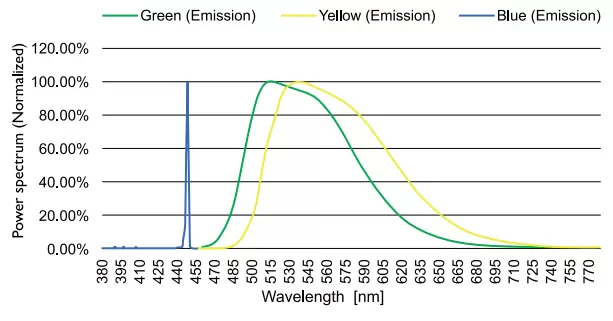

Emission spectrum


Technical Data

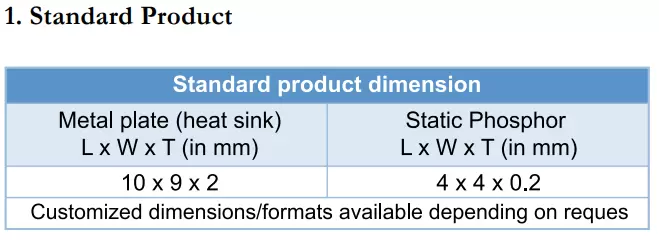

1. Standard Product

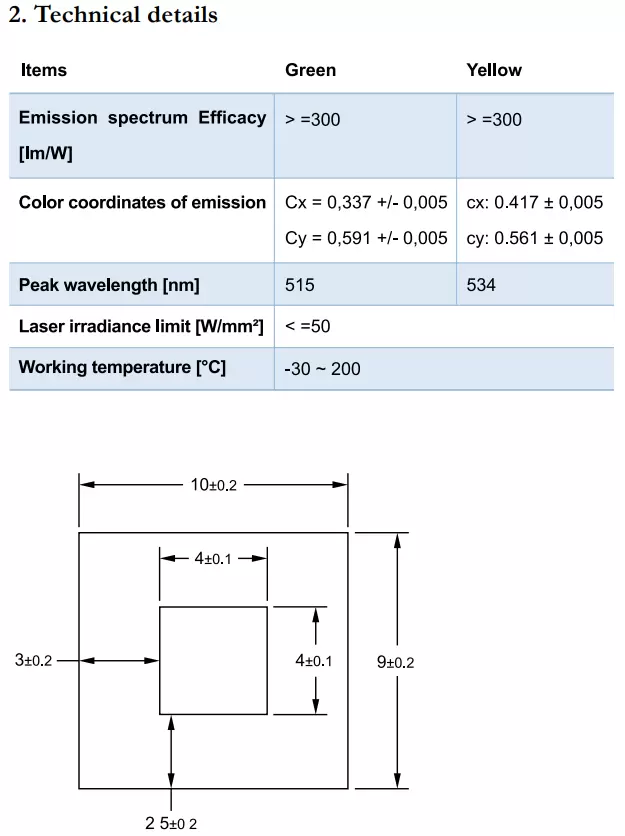

2. Technical details
