LumiWheel™

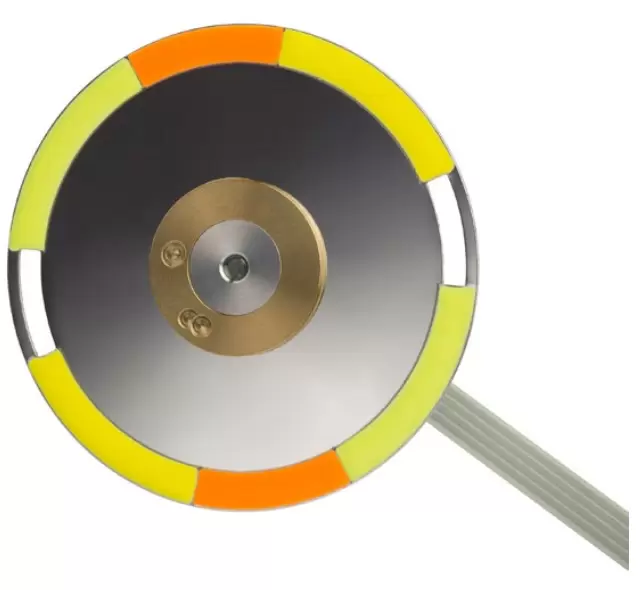

LumiWheel™ for Projection Display

As part of the solution to your total light management challenge, Materion Balzers Optics offers our reliable, high performance LumiWheel™. This design offers superb flexibility for light converting and color splitting in solid state illumination and field sequential lighting management in digital projection, video production solid state illumination and professional lighting. As the world's largest manufacturer of optical components, we provide an array of products to support your light management requirements including : color wheel, diffuser wheel, dichroic color separation filters, hot and cold mirrors, UV/IR blocking filters, solid and hollow light integrators, high reflectivity folding mirrors, cold light reflectors, ARcoatings, and light engine procurement assemblies.

Benefits

The LumiWheel™ 2x, 3x and 4x. Speed design offers a high degree of flexibility and can be customized for:

Diameter
Phosphor type
Number of phosphor segments

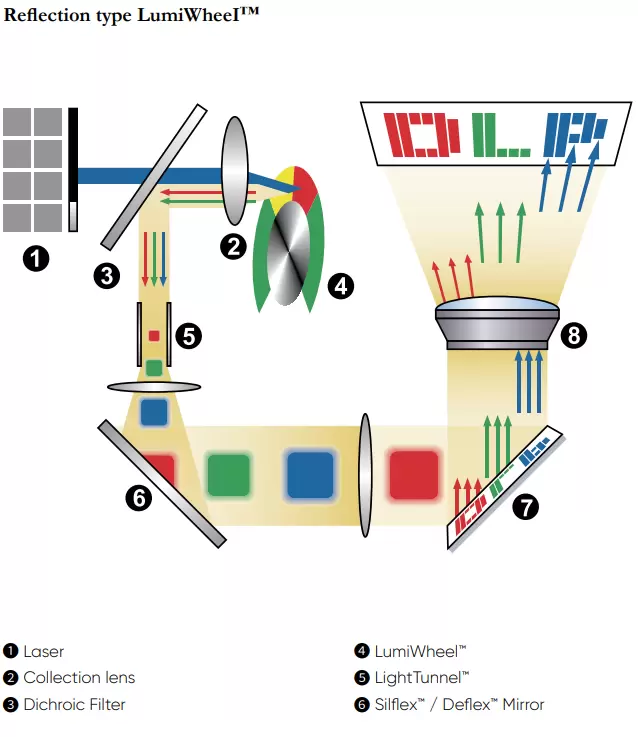

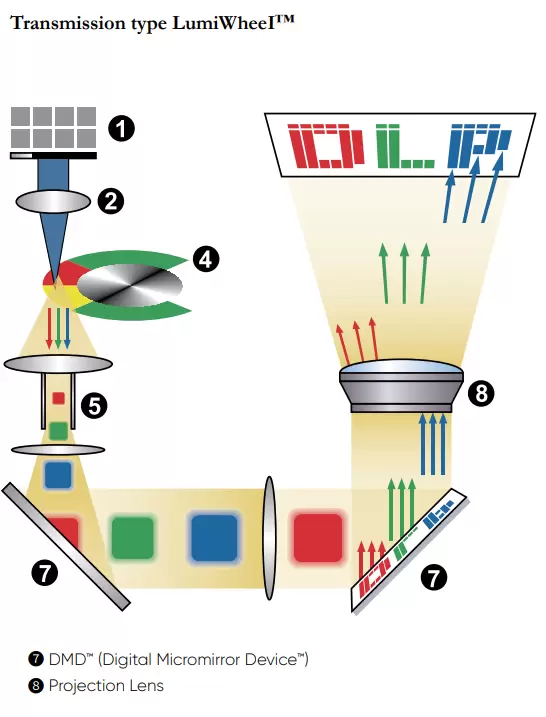

Reflection type or transmissive type
Coating
Motor speed
Integrated timing index sensor available

Reliability and performance is assured with proven:

Excellent efficiency performance for laser converting
Excellent thermal conductivity
Enhanced optical performance by coating
Stable colors
Motor technology
Individual precision balancing
Low noise characteristics

Applications

We offer various custom-configured LumiWheel™ designs for different applications including projectors, solid state illumination, head-up displays, professional lighting, etc.

The small size LumiWheeI™ meets the requirements of the new pico laser portable projectors or laser phosphor illumination system
The large size LumiWheel™ meets the requirements of the large venue and cinema brand projectors
Optimized for high brightness and enhanced color, the LumiWheel™ is also designed to produce high efficiency and good thermal conductivity
