Light Tunnel ™

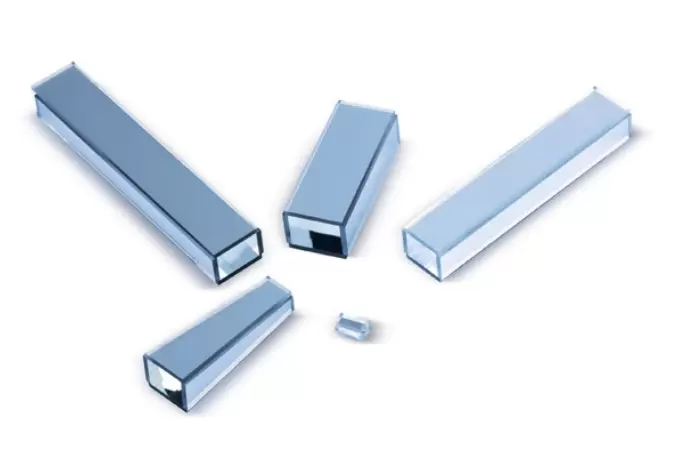

Light Tunnel™ for Projection Display

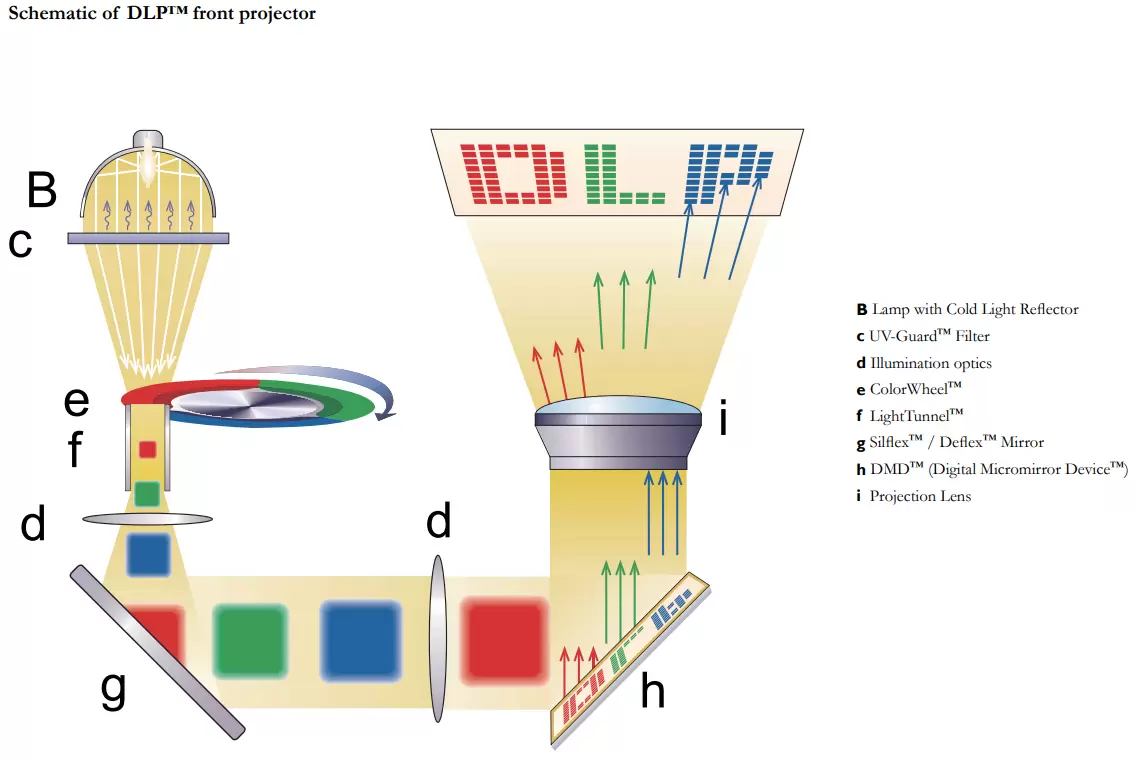

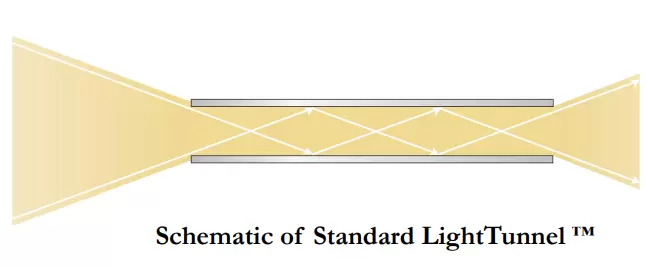

Unlike competitor products, the Materion Balzers Optics hollow integrator LightTunnel™ creates enhancement of light uniformity by outstanding reflection. Used for light integration in projection systems employing DLP™ technology, its compact design establishes a new standard for por table projection systems. We apply our patented Silflex™ HLE7 silver coating or 400 Deflex™ 75 dielectric coating to the internal surfaces of the LightTunnel™ giving it unique advantages.

Benefits

Enhanced light uniformity by high reflection
Reduced flickering effects
Reduces length of solid glass integrator rods by 50%
Exhibits less sensitivity to dust
Compact design for ultra compact projection displays
No impact on color

Applications

Light integration in por table business and large venue projection systems employing DLP™ technology.

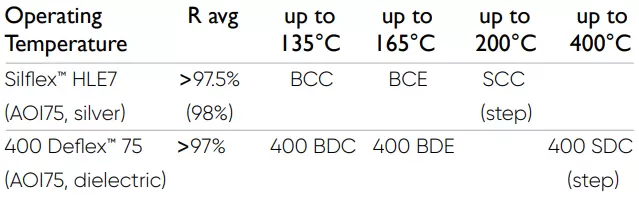

Overview LightTunnel™ Portfolio

Technical Data

Dimensions

Any customized size in rectangular or tapered versions

Substrate

Floatglass, 1.1 ± 0.1 mm, other substrates on request

Coating

Materion Precision Optics Silflex™ HLE7 (as per data sheet)
Materion Precision Optics 400 Deflex™ 75 (as per data sheet)

Reflectivity

Silflex™ HLE7: R avg. ≥97.5% at 420 – 680 nm
Optimized for random pol., AOI = 75°
400 Deflex™ 75: R avg. ≥97% at 420 – 680 nm
Optimized for random pol., AOI = 75°

Environmental resistance and durability test

Operating temperature

Silflex™ HLE7: up to 200°C depending on design
400Deflex™ 75: up to 400°C depending on design

Storage temperature

-20 to +85°C

Scratches and digs (for coating only)

Depending on specificat (ioninput and output edges)
Typically 50/2 × 0.4; R0.2 (chips on)
